SY method_Earth drilling method

The S Y method is a new cast-in-place concrete expanded pile construction method that can obtain a large supporting force by enlarging the diameter of bottom part by more than twice that of hole diameter.
( Excavating up to 4.84 times than the bottom part area )

SY method
Features of the construction method
Maximum expanded diameter φ4700mm.
4.48 times high support force.
Expand the enlargement ratio form the conventional 3.2 times up to 4.84 times.
It corresponds to economical design.
Compatible with high strength concrete.
Concrete design standard strength up to 45 N/mm2.
Even in narrow field.
A mechanicl mechanism with a maximum inclination angle of 16° miniaturizes the enlarged bucket. Compatible with small excavator and reaction equipment.
It works well with all casing.
Drilling on the bottom can be done with full circumference rotary excavator and reaction equipment.
Reliable construction control.
Manage reliably with the mechanical limit function by the expansion wing restriction stopper.
Proper bottom drilling ability.
Check the height of bottom drilling in the construction test.
Confirmation of pile safety.
Safety is confirmed by FEM analysis and 1/10 model destruction experiment.
Confirmation of construction safety.
Cheek and confirm the construction safety by various construction experiments.

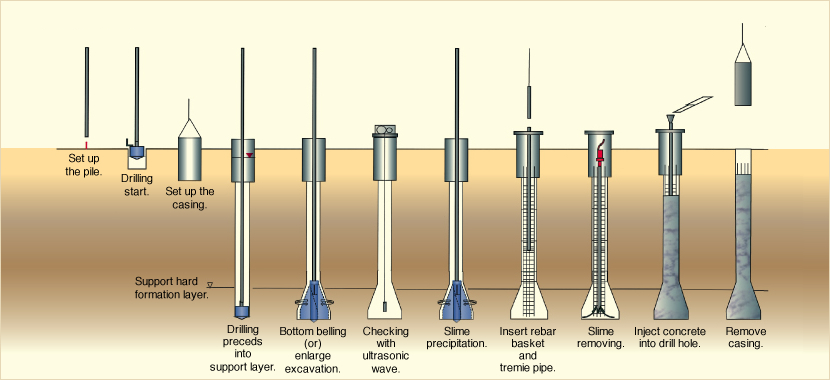

Construction procedures

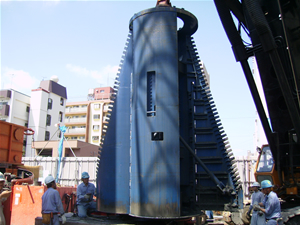

Status of construction site
